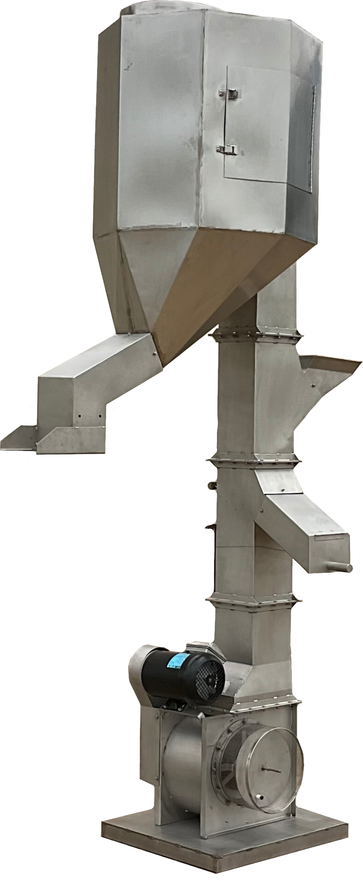

CYCLONE HEAD BLOWER

Model Number: ME-B(8 or 12)-S
PRODUCT DESCRIPTION
The Cyclone Head Blower is sold in two sizes: 8” and 12”. The 8” and 12” dimensions refer to the blower's trunk dimensions (8” or 12“square). The larger the trunk is, the more product the blower is capable of separating. The blower passes the pecan nutmeat and shell through a column of air. Because of the difference of density between the nutmeat and shell, the shell is blown off leaving only kernel. Multiple blowing stages may be used to acquire a greater degree of shell removal. In addition, the blower's air flow rate can be adjusted by the user to account for smaller or larger pieces or halves. Each blower is supplied with baffle screens for halves, medium, and small pieces.​
SPECIFICATIONS
The capacity of the 8" and 12" Cyclone Head Blower depends on the product that is being separated.

8” Cyclone Head Blower
  • Estimated Crated Weight: 555 lbs,
  • Dimensions: 34" Width x 58" Length x 113" Height,
  • Estimated Volume Flow: 3,300-2,500 lb/hr
12” Cyclone Head Blower
  • Estimated Crated Weight: 675 lbs,
  • Dimensions: 60" Width x 60" Length x 140" Height
  • Estimated Volume Flow: 5,000-3,700 lb/h​
PRODUCT DOCUMENTATION:
Product Information Sheet (pdf file) available here
FEATURES:
• Stainless steel construction
• Special head design helps to eliminate dust
• Very few moving parts
• Time proven design
​• Industry’s only multi positional chutes
