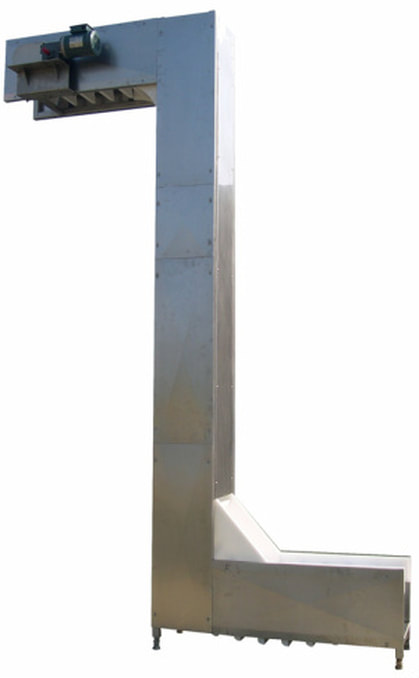

CONVEYING ELEVATOR
Model Number: ME-CEL
|
PRODUCT DESCRIPTION
Designed to carry product from one level to another, the Conveying Elevator allows food processors to utilize their plant's free space more efficiently. It is constructed completely of stainless steel and food grade plastic. The modular belting is made of plastic with 6" wide or 12" wide buckets spaced every six inches. The entire delivery side of the elevator is enclosed to ensure that even small product pieces stay on the belt, and not on the floor. Installation is easy because the thick walled construction resists warping when being moved into place with fork trucks. Cleaning is even easier; just remove the outer panels, and the entire elevator can be cleaned in no time; All areas are accessible.
SPECIFICATIONS
Capacity: The Conveying Elevator is capable of moving from 263 to 657 cu ft/hr.
Estimated Crated Weight: Weight depends upon elevator dimensions. Dimensions: The length of the horizontal sections and the vertical section is to be specified by the customer. • Input Height = 24.375" (Lower Input Heights may be available) • Discharge Height = Overall Height - 18.875' PRODUCT DOCUMENTATION
|
FEATURES
• Stainless steel heavy duty construction
• Clean operation; the product stays on the belt.
• Can be cleaned inside and out quickly.
• Clean operation; the product stays on the belt.
• Can be cleaned inside and out quickly.
|
|
|
|
|
