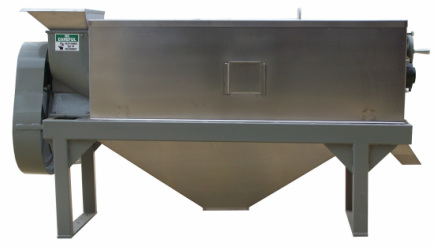

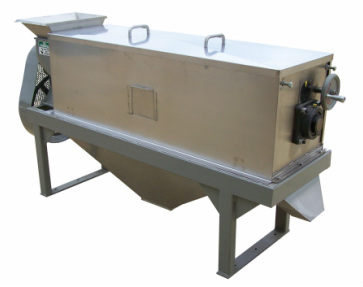

18" SHELLER

Model Number: ME-AS-18-19R


PRODUCT DESCRIPTION

The 18" Sheller is a time proven durable design. It is easy to operate and simple to maintain. After pecans have been cracked, they are ready for shelling. The 18” Sheller agitates the cracked pecans so that the shell and nutmeat are no longer clinging together. Once the shell and nutmeat are separated from each other the mixture is discharged together into the desired bin or container. Improperly cracked pecans are discharged through the override chute. The 18" Sheller is supplied with (1) 3/4 HP three phase motor, dial adjustment, and paddle shaft speed adjustment, The discharge hopper, override chute, and protective covers are fabricated of stainless steel sheet. All internal product contact surfaces, except the paddle shaft and sheller rings, are zinc plated mild steel. There are no parts inside the sheller that are painted. Only the base frame, which is made from mild steel, is painted light gray.
SPECIFICATIONS

Capacity: The 18" Sheller can handle the output of either 3 Quantz Crackers or 15 Modern Electronics Crackers, approximately 1800-1500 lb/hr.
Estimated Crated Weight: 1,500 lbs
Dimensions: Approximately 35-1/2" Width x 86" Length x 48" Height
PRODUCT DOCUMENTATION

Product Information Sheet (pdf file) available here
FEATURES

• Paddle shaft speed adjustable while the sheller is running.
• Adjust for different pecan sizes while the machine is running.
• Robust commercial grade design will provide years of operation.
